| GAS CYLINDERS |
 |
|
|

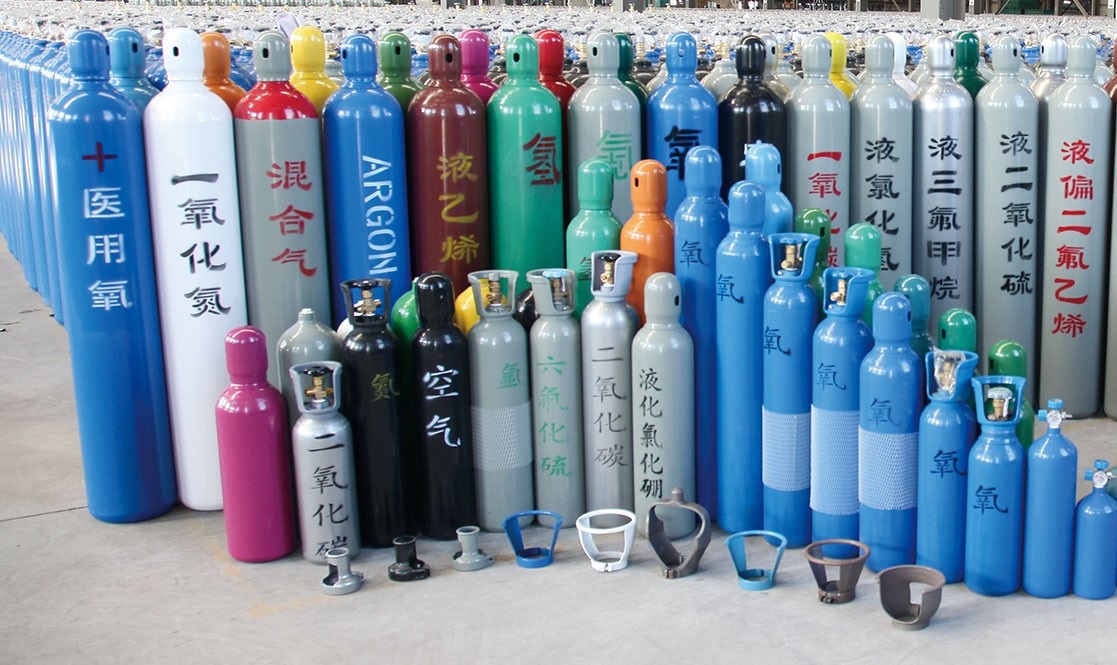

Seamless Steel Oxygen Cylinder 1.Manufacturer can supply both industrial gas and gas cylinders.
2.Products exoported to 100 countries.
3.Volume:1L-50L Product Description
The gas industry relies heavily on cylinders to store and transport gases.High-pressure gas cylinders – for oxygen, hydrogen, nitrogen, argon, helium, air etc
Manufacture Standard for our gas cylinders: GB5099, ISO9809.The raw material is Seamless Steel Pipe.
Our Seamless Steel Gas Cylinders can be widely used in many fields, such as industry, medical equipment, fire protection and scientific research, for storage and transport of permanent gases and high pressure liquefied gases, such as Oxygen Gas, Carbon Dioxide Gas, Argon Gas, Nitrogen Gas, Helium Gas, Carbon Monoxide Gas, SF6 Gas, N2O gas, Air, etc.Seamless Steel Oxygen Cylinder GB5099 / ISO9809 Specification
| Model | Capacity (L) | O.D. (mm) | Height (mm) | Weight (kg) | Material | Standard | | WMA108-2-15 | 2.0 | 108 | 320 | 3.75 | 37Mn | GB5099/ ISO9809-3 | | WMT108-2-15 | 2.0 | 108 | 317 | 3.72 | | WMA121-3.2-15 | 3.2 | 121 | 390 | 5.02 | | WMT121-3.2-15 | 3.2 | 121 | 385.8 | 4.98 | | WMA121-4-15 | 4.0 | 121 | 485 | 6.16 | | WMT121-4-15 | 4.0 | 121 | 470 | 5.95 | | WMA140-4-15 | 4.0 | 140 | 372 | 5.77 | | WMA140-5-15 | 5.0 | 140 | 458 | 7.52 | | WMA140-6.3-15 | 6.3 | 140 | 524 | 8.72 | | WMA140-7-15 | 7.0 | 140 | 593 | 9.84 | | WMA140-8-15 | 8.0 | 140 | 671 | 10.72 | | WMA140-10-15 | 10 | 140 | 845 | 13.4 | | WMA152-7-15 | 7.0 | 152 | 528 | 9.57 | | WMA152-8-15 | 8.0 | 152 | 600 | 10.66 | | WMA152-10-15 | 10.0 | 152 | 726 | 12.6 | | WMA159-10-15 | 10.0 | 159 | 685 | 14.15 | | WMA159-12-15 | 12.0 | 159 | 800 | 16.34 | | WMA159-15-15 | 15.0 | 159 | 975 | 19.66 | | WMA219-20-15 | 20.0 | 219 | 730 | 29.00 | | WMA219-40-15 | 40.0 | 219 | 1310 | 48.00 | | WMA232-40-15 | 40.0 | 232 | 1220 | 50.00 | | WZA232-47-15 | 47.0 | 232 | 1360 | 51.00 | | WMA219-50-15 | 50.0 | 219 | 1600 | 57.00 | | WMA232-50-15 | 50.0 | 232 | 1380 | 65.00 | | IWGA219-40-15 | 40.0 | 219 | 1380 | 52.00 | 34CrMo4 | ISO9809-1 | | IWGA232-40-20 | 40.0 | 232 | 1170 | 52.00 | | IWGA232-47-20 | 47.0 | 232 | 1360 | 55.00 | | IWGA232-50-20 | 50.0 | 232 | 1440 | 56.00 | Note:1.WMA-Concave Bottom WMT-Convex Bottom
2. Hydraulic test pressure: 25Mpa or 30Mpa
3. Working test pressure: 15Mpa or 20Mpa
|
|
 | |
